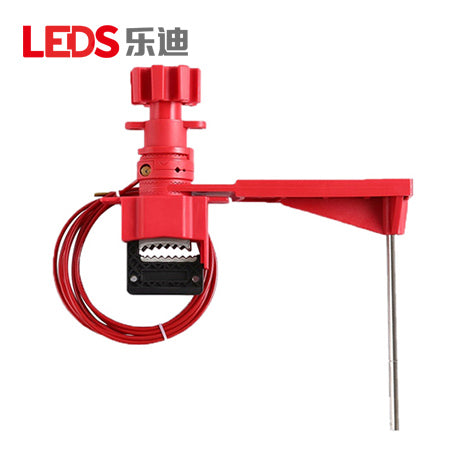

LDV65 - Universal Valve Lockout for Difficult Applications

The LEDS LDV65 is a universal valve lockout configuration combining a blocking arm with a cable for difficult-to-secure valve arrangements. The October 2024 LEDS catalog identifies this model for specific situations in which a conventional lockout device is difficult to apply. Its lock body combines reinforced PA nylon with a toothed stainless-steel plate and a stainless-steel frame. The catalog describes a PVC-coated stainless-steel cable as an optional accessory for the universal family and prints the cable size as 1/8 in. The family is presented for gate, ball, and butterfly valves, large levers, T-handles, and other difficult-to-secure mechanical equipment. General catalog text states a maximum valve-handle width of 40 mm and a maximum handle thickness of 28 mm.

Specifications

Model : LDV65

Type : Universal Valve Lockout for Difficult Applications

Specific Catalog Application : Specific Difficult-to-Lock Devices or Situations

Compatible Valve Types : Gate Valves, Ball Valves, Butterfly Valves

Additional Applications : Large Levers, T-Handles, Difficult-to-Secure Mechanical Equipment

Material : Reinforced PA Nylon with Toothed Stainless-Steel Plate and Stainless-Steel Frame

Optional Cable Accessory : PVC-Coated Stainless-Steel Cable

Catalog-Printed Optional Cable Size : 1/8 in

Catalog General Maximum Handle Width : 40 mm

Catalog General Maximum Handle Thickness : 28 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
