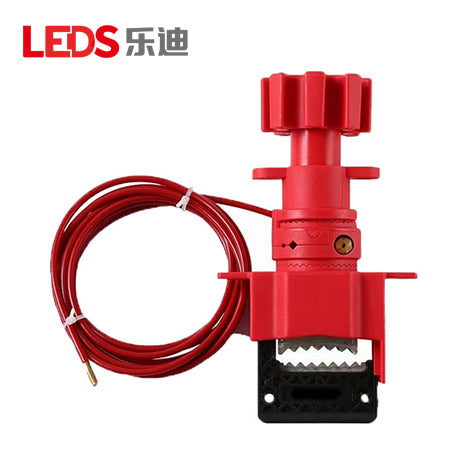

LDV64 - Universal Cable Valve Lockout

The LEDS LDV64 is a universal valve lockout configuration that uses a cable to secure a valve during Lockout/Tagout (LOTO). Its lock body combines reinforced PA nylon with a toothed stainless-steel plate and a stainless-steel frame. The October 2024 LEDS catalog identifies LDV64 specifically for cable-based valve locking. It also describes a PVC-coated stainless-steel cable as an optional accessory for the universal family and prints the cable size as 1/8 in. The open-ended clamp can be applied around a closed ring or used on a wide handle, and the system is presented for gate, ball, and butterfly valves. General catalog text states a maximum valve-handle width of 40 mm and a maximum handle thickness of 28 mm.

Specifications

Model : LDV64

Type : Universal Cable Valve Lockout

Specific Catalog Application : Securing Valves with a Cable

Compatible Valve Types : Gate Valves, Ball Valves, Butterfly Valves

Material : Reinforced PA Nylon with Toothed Stainless-Steel Plate and Stainless-Steel Frame

Optional Cable Accessory : PVC-Coated Stainless-Steel Cable

Catalog-Printed Optional Cable Size : 1/8 in

Clamp Design : Open-Ended Clamp for Closed Rings and Wide Handles

Catalog General Maximum Handle Width : 40 mm

Catalog General Maximum Handle Thickness : 28 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
