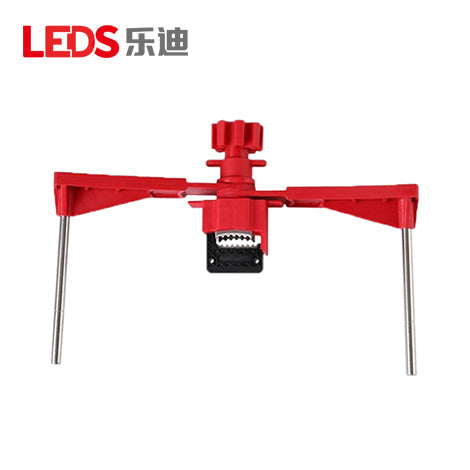

LDV63 - Universal Valve Lockout with Dual Blocking Arms

The LEDS LDV63 is a universal valve lockout configuration with two blocking arms. The October 2024 LEDS catalog identifies the dual-arm design for locking three-way, four-way, or five-way valves, or for holding a valve at a fixed throttling position. The lock body combines reinforced PA nylon with a toothed stainless-steel plate and a stainless-steel frame. Its open-ended clamp can be applied around a closed ring or used on a wide handle. The universal family is presented for gate, ball, and butterfly valves. General catalog text states a maximum valve-handle width of 40 mm and a maximum handle thickness of 28 mm.

Specifications

Model : LDV63

Type : Universal Valve Lockout with Dual Blocking Arms

Specific Catalog Application : Three-Way, Four-Way, or Five-Way Valves; Fixed Throttling Position

Compatible Valve Types : Gate Valves, Ball Valves, Butterfly Valves

Material : Reinforced PA Nylon with Toothed Stainless-Steel Plate and Stainless-Steel Frame

Clamp Design : Open-Ended Clamp for Closed Rings and Wide Handles

Catalog General Maximum Handle Width : 40 mm

Catalog General Maximum Handle Thickness : 28 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
