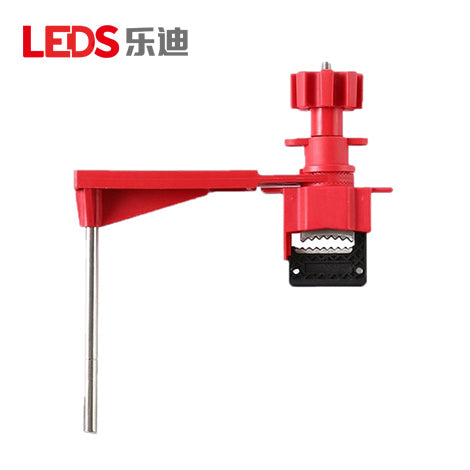

LDV62 - Universal Valve Lockout with Single Blocking Arm

The LEDS LDV62 is a universal valve lockout configuration with a single blocking arm. The October 2024 LEDS catalog identifies the single arm for locking valves whose handles move through a right angle. Its lock body combines reinforced PA nylon with a toothed stainless-steel plate and a stainless-steel frame, while the open-ended clamp can be applied around a closed ring or used on a wide handle. The universal family is presented for gate, ball, and butterfly valves, as well as large levers, T-handles, and other difficult-to-secure mechanical equipment. General catalog text states a maximum valve-handle width of 40 mm and a maximum handle thickness of 28 mm.

Specifications

Model : LDV62

Type : Universal Valve Lockout with Single Blocking Arm

Specific Catalog Application : Valves with Right-Angle Handle Movement

Compatible Valve Types : Gate Valves, Ball Valves, Butterfly Valves

Additional Applications : Large Levers, T-Handles, Difficult-to-Secure Mechanical Equipment

Material : Reinforced PA Nylon with Toothed Stainless-Steel Plate and Stainless-Steel Frame

Clamp Design : Open-Ended Clamp for Closed Rings and Wide Handles

Catalog General Maximum Handle Width : 40 mm

Catalog General Maximum Handle Thickness : 28 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
