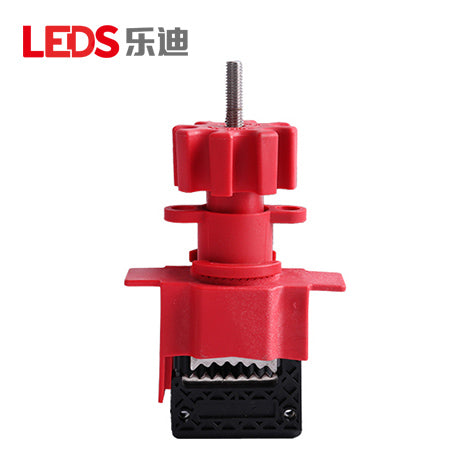

LDV61 - Universal Valve Lockout for Disc-Shaped Handles

The LEDS LDV61 is a universal valve lockout for securing a disc-shaped handle and preventing it from closing during Lockout/Tagout (LOTO). The lock body combines reinforced PA nylon with a toothed stainless-steel plate and a stainless-steel frame. Its open-ended clamp design can be applied around a closed ring and used on wide handles. The catalog presents the universal family for gate, ball, and butterfly valves. General catalog text states a maximum valve-handle width of 40 mm and a maximum handle thickness of 28 mm.

Specifications

Model : LDV61

Type : Universal Valve Lockout

Specific Catalog Application : Securing a Disc-Shaped Handle to Prevent Closure

Compatible Valve Types : Gate Valves, Ball Valves, Butterfly Valves

Material : Reinforced PA Nylon with Toothed Stainless-Steel Plate and Stainless-Steel Frame

Clamp Design : Open-Ended Clamp for Closed Rings and Wide Handles

Catalog General Maximum Handle Width : 40 mm

Catalog General Maximum Handle Thickness : 28 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
