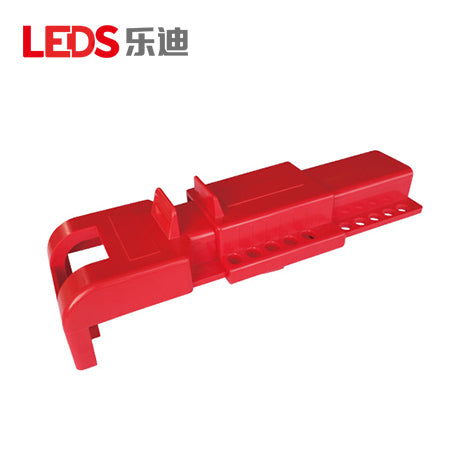

LDV51 - Adjustable Butterfly Valve Lockout

The LEDS LDV51 is an adjustable butterfly valve lockout designed for valve handles measuring 8-45 mm in width. Its engineering-plastic ABS body fits over the butterfly-valve handle to help prevent movement during Lockout/Tagout, inspection, and maintenance. The October 2024 LEDS catalog separately lists an applicable valve-stem diameter of 25-76 mm (1-3 in), a 9 mm lock-hole diameter, an overall length of 310 mm, and an overall height of 70 mm. The red lockout can be secured with one safety padlock having a shackle diameter of up to 7 mm. Handle width and valve-stem diameter are retained as separate selection parameters and should not be treated as the same measurement.

Specifications

Model : LDV51

Type : Adjustable Butterfly Valve Lockout

Application : Compatible Butterfly Valves

Applicable Valve Handle Width : 8-45 mm

Catalog-Listed Applicable Valve Stem Diameter : 25-76 mm (1-3 in)

Lock Body Material : Engineering Plastic ABS

Catalog Overall Length : 310 mm

Catalog Overall Height : 70 mm

Lock Hole Diameter : 9 mm

Color : Red

Maximum Padlock Shackle Diameter : 7 mm

Lockout Capacity : 1 Padlock

⚠️ This product requires a lead time of 2-5 weeks before shipment.
