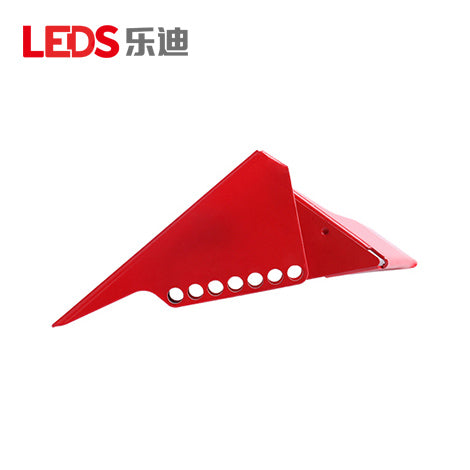

LDV32 - Standard Ball Valve Lockout for DN50-DN200

The LEDS LDV32 is a standard ball valve lockout for securing a larger right-angle ball valve in the closed position during Lockout/Tagout (LOTO). It is manufactured from national-standard A3 steel plate and receives a high-temperature powder-coated finish for rust resistance. The October 2024 LEDS catalog lists compatibility with DN50-DN200 ball valves. The model drawing shows an overall length of 250 mm, a height of 76 mm, and 10 mm lock holes. The catalog states a maximum compatible padlock-shackle diameter of 10 mm.

Specifications

Model : LDV32

Type : Standard Ball Valve Lockout

Application : Closed-Position Right-Angle Ball Valve Isolation, Lockout/Tagout (LOTO)

Material : National-Standard A3 Steel Plate

Surface Treatment : High-Temperature Powder-Coated Finish

Color : Red

Applicable Ball-Valve Size : DN50-DN200

Catalog Overall Length : 250 mm

Catalog Height : 76 mm

Lock Hole Diameter : 10 mm

Maximum Padlock Shackle Diameter : 10 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
