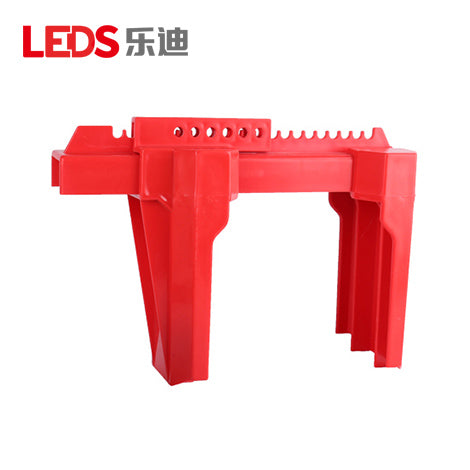

LDV22 - Large Adjustable Ball Valve Lockout

The LEDS LDV22 is a large adjustable ball valve lockout for securing larger ball valves during Lockout/Tagout (LOTO). The red lockout body is made from ABS engineering plastic. The October 2024 LEDS catalog specifies use with ball valves on pipes measuring 50-200 mm in diameter, and the model table lists an applicable ball-valve size of DN50-DN200. A safety padlock with a shackle diameter no greater than 8 mm can be used to secure the device.

Specifications

Model : LDV22

Type : Large Adjustable Ball Valve Lockout

Application : Ball Valve Isolation, Lockout/Tagout (LOTO)

Material : ABS Engineering Plastic

Color : Red

Catalog Applicable Ball-Valve Size : DN50-DN200

Applicable Pipe Diameter Range : 50-200 mm

Maximum Padlock Shackle Diameter : 8 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
