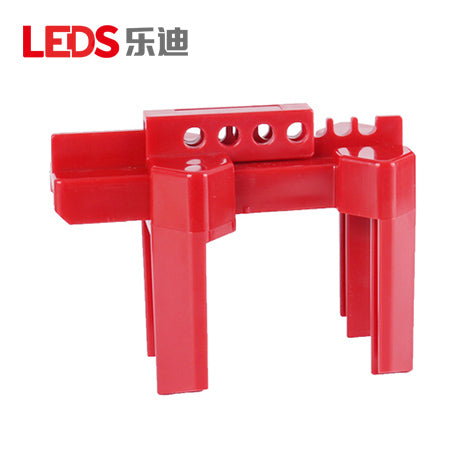

LDV21 - Small Adjustable Ball Valve Lockout

The LEDS LDV21 is a small adjustable ball valve lockout for securing a ball valve during Lockout/Tagout (LOTO). Its red body is made from ABS engineering plastic. According to the October 2024 LEDS catalog, it is suitable for ball valves on pipes measuring 13-64 mm in diameter when the valve is closed; when the valve is open, the locking range is reduced to 13-32 mm. The model table lists an applicable ball-valve size of DN8-DN50. The lockout accepts a safety padlock with a shackle diameter no greater than 8 mm.

Specifications

Model : LDV21

Type : Small Adjustable Ball Valve Lockout

Application : Ball Valve Isolation, Lockout/Tagout (LOTO)

Material : ABS Engineering Plastic

Color : Red

Catalog Applicable Ball-Valve Size : DN8-DN50

Pipe Diameter Range with Valve Closed : 13-64 mm

Pipe Diameter Range with Valve Open : 13-32 mm

Maximum Padlock Shackle Diameter : 8 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
