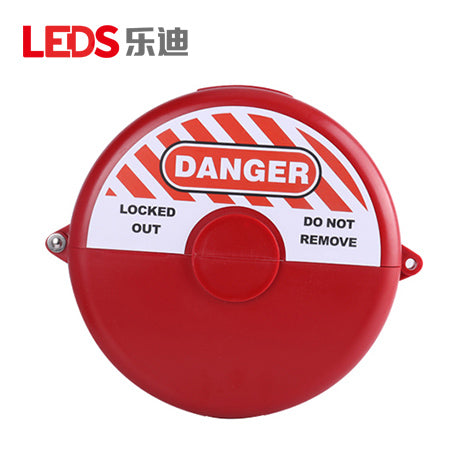

LDV15 - Standard Gate Valve Lockout for 254-330 mm Handwheels

The LEDS LDV15 is a standard gate valve lockout for larger valve handwheels measuring 254-330 mm (10-13 in) in diameter. Its two-piece ABS housing closes around and covers the handwheel, helping prevent unauthorized or unintended operation while the valve is isolated for inspection or maintenance. The hollow-center form accommodates rising valve stems. According to the October 2024 LEDS catalog, its A, B, and C dimensions are 364, 76, and 105 mm respectively. The red device accepts one safety padlock with a shackle diameter of up to 7 mm. Custom colors and Chinese or English universal warning labels are available.

Specifications

Model : LDV15

Type : Standard Gate Valve Lockout

Application : Rising-Stem and Compatible Gate Valves

Applicable Valve Handwheel Diameter : 254-330 mm (10-13 in)

Lock Body Material : Engineering Plastic ABS

Catalog Dimensions (A x B x C) : 364 x 76 x 105 mm

Color : Red; Custom Colors Available

Maximum Padlock Shackle Diameter : 7 mm

Lockout Capacity : 1 Padlock

Warning Label : Universal Warning Label; Chinese or English Available

⚠️ This product requires a lead time of 2-5 weeks before shipment.
