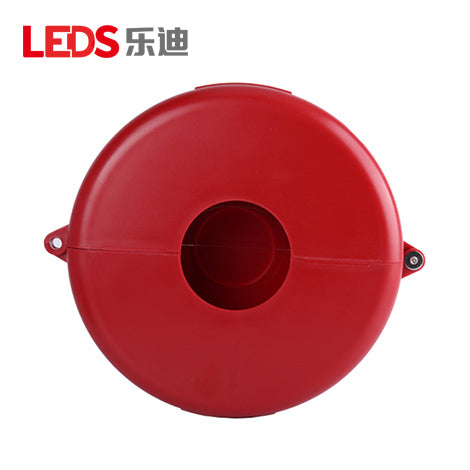

LDV14 - Standard Gate Valve Lockout for 165-254 mm Handwheels

The LEDS LDV14 is a standard gate valve lockout for valve handwheels with diameters from 165 to 254 mm (6.5-10 in). Its two-piece engineering-plastic ABS body encloses the handwheel to help prevent unintended operation during Lockout/Tagout, servicing, and maintenance. The hollow-center construction is suitable for rising-stem gate valves. The October 2024 LEDS catalog lists A, B, and C dimensions of 280, 76, and 89 mm respectively. The red housing accepts one safety padlock with a shackle diameter of up to 7 mm. Custom body colors and Chinese or English universal warning labels can be selected.

Specifications

Model : LDV14

Type : Standard Gate Valve Lockout

Application : Rising-Stem and Compatible Gate Valves

Applicable Valve Handwheel Diameter : 165-254 mm (6.5-10 in)

Lock Body Material : Engineering Plastic ABS

Catalog Dimensions (A x B x C) : 280 x 76 x 89 mm

Color : Red; Custom Colors Available

Maximum Padlock Shackle Diameter : 7 mm

Lockout Capacity : 1 Padlock

Warning Label : Universal Warning Label; Chinese or English Available

⚠️ This product requires a lead time of 2-5 weeks before shipment.
