LDV13 - Standard Gate Valve Lockout for 127-165 mm Handwheels English Listing Copy

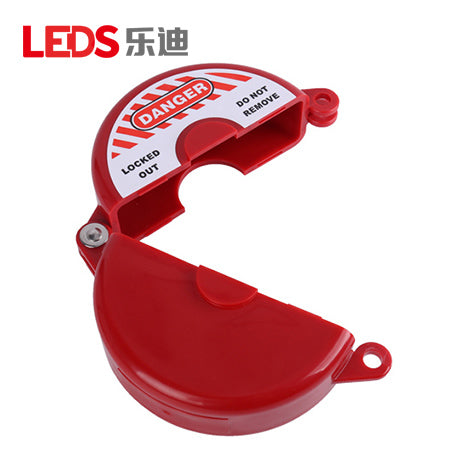

The LEDS LDV13 is a standard gate valve lockout for valve handwheels measuring 127-165 mm (5-6.5 in) in diameter. The two-piece ABS enclosure covers the handwheel and helps prevent unintended valve operation while equipment is isolated for servicing, inspection, or maintenance. Its hollow-center design is compatible with rising-stem gate valves. Based on the October 2024 LEDS catalog, the A, B, and C dimensions are 184, 53, and 63 mm respectively. The red lockout can be secured with one safety padlock having a shackle diameter of up to 7 mm. Custom colors and Chinese or English universal warning labels are available.

Specifications

Model : LDV13

Type : Standard Gate Valve Lockout

Application : Rising-Stem and Compatible Gate Valves

Applicable Valve Handwheel Diameter : 127-165 mm (5-6.5 in)

Lock Body Material : Engineering Plastic ABS

Catalog Dimensions (A x B x C) : 184 x 53 x 63 mm

Color : Red; Custom Colors Available

Maximum Padlock Shackle Diameter : 7 mm

Lockout Capacity : 1 Padlock

Warning Label : Universal Warning Label; Chinese or English Available

⚠️ This product requires a lead time of 2-5 weeks before shipment.
