LDV12 - Standard Gate Valve Lockout for 64-127 mm Handwheels

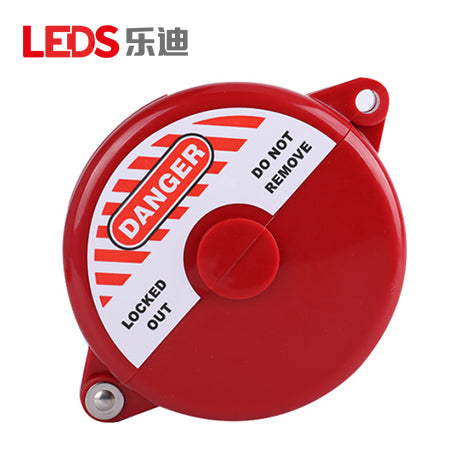

The LEDS LDV12 is a standard gate valve lockout designed for valve handwheels with diameters from 64 to 127 mm (2.5-5 in). Its two-piece engineering-plastic ABS body closes around the handwheel, helping block access and prevent unintended operation during energy-isolation and maintenance procedures. The hollow-center construction accommodates rising valve stems. The October 2024 LEDS catalog specifies A, B, and C dimensions of 142, 46, and 45 mm respectively. The red body accepts one safety padlock with a shackle diameter of up to 7 mm. Custom body colors and Chinese or English universal warning labels are available.

Specifications

Model : LDV12

Type : Standard Gate Valve Lockout

Application : Rising-Stem and Compatible Gate Valves

Applicable Valve Handwheel Diameter : 64-127 mm (2.5-5 in)

Lock Body Material : Engineering Plastic ABS

Catalog Dimensions (A x B x C) : 142 x 46 x 45 mm

Color : Red; Custom Colors Available

Maximum Padlock Shackle Diameter : 7 mm

Lockout Capacity : 1 Padlock

Warning Label : Universal Warning Label; Chinese or English Available

⚠️ This product requires a lead time of 2-5 weeks before shipment.
