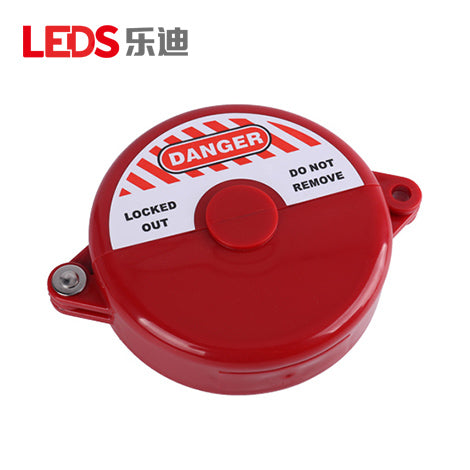

LDV11 - Standard Gate Valve Lockout for 25-64 mm Handwheels

The LEDS LDV11 is a standard gate valve lockout for valve handwheels measuring 25-64 mm (1-2.5 in) in diameter. Its two-piece ABS housing closes around and covers the handwheel to help prevent unintended valve operation during inspection, servicing, or maintenance. The hollow-center design is suitable for rising-stem gate valves. The October 2024 LEDS catalog lists A, B, and C dimensions of 80, 36, and 20 mm respectively. The red lockout accepts one safety padlock with a shackle diameter of up to 7 mm. The body color can be customized, and a universal warning label is available in Chinese or English.

Specifications

Model : LDV11

Type : Standard Gate Valve Lockout

Application : Rising-Stem and Compatible Gate Valves

Applicable Valve Handwheel Diameter : 25-64 mm (1-2.5 in)

Lock Body Material : Engineering Plastic ABS

Catalog Dimensions (A x B x C) : 80 x 36 x 20 mm

Color : Red; Custom Colors Available

Maximum Padlock Shackle Diameter : 7 mm

Lockout Capacity : 1 Padlock

Warning Label : Universal Warning Label; Chinese or English Available

⚠️ This product requires a lead time of 2-5 weeks before shipment.
