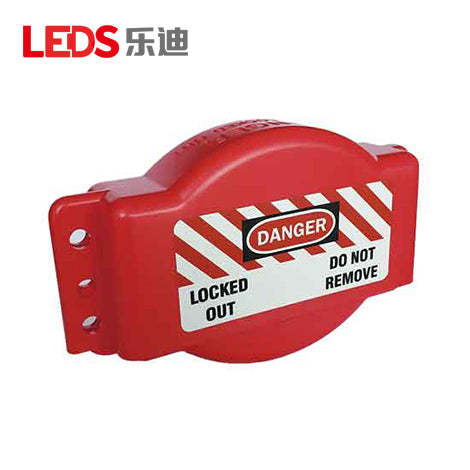

LDV10 - Adjustable Gate Valve Lockout

The LEDS LDV10 is an adjustable gate valve lockout for securing a gate-valve operating point during Lockout/Tagout (LOTO). It is made from ABS engineering plastic and can be used with a safety padlock having a shackle diameter no greater than 10 mm. The October 2024 LEDS catalog describes the lockout as adjustable for valve handles measuring 25-165 mm, while the LDV10 table separately lists an applicable gate-valve stem diameter of 25-76 mm (1-3 in). Because the PDF labels these two ranges differently, they should be checked against the actual valve before purchase.

Specifications

Model : LDV10

Type : Adjustable Gate Valve Lockout

Application : Gate Valve Isolation, Lockout/Tagout (LOTO)

Material : ABS Engineering Plastic

Catalog-Stated Valve Handle Range : 25-165 mm

Applicable Gate-Valve Stem Diameter in Catalog Table : 25-76 mm (1-3 in)

Maximum Padlock Shackle Diameter : 10 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
