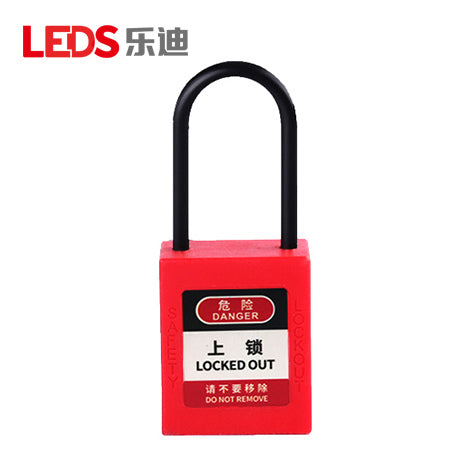

LDP42 - 4 mm Thin Nylon-Shackle Safety Padlock

The LEDS LDP42 is a thin-shackle safety padlock with a 4 mm non-conductive nylon shackle, designed for compact electrical isolation points and lockout holes that cannot accept a standard 6 mm shackle. The slim PA nylon shackle provides a 23 mm internal width and is suitable where a metal shackle is undesirable. Its engineering-plastic body is lightweight and designed for resistance to UV exposure, corrosion, temperature variation, and impact. A key-retaining mechanism prevents the key from being removed while the padlock is open. Multiple keying configurations, nine body colors, and customizable markings support clear safety identification.

Specifications

Model : LDP42

Variant Models : LDP42-D / LDP42-A / LDP42-MK / LDP42-AMK / LDP42-GMK

Type : 4 mm Thin Nylon-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Electrical Isolation, Small Lockout Holes

Shackle Material : PA Nylon

Shackle Diameter : 4 mm

Shackle Clearance : 38 mm (H) x 23 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Features : Key-retaining design; customizable safety labels and laser markings

⚠️ This product requires a lead time of 2-5 weeks before shipment.
