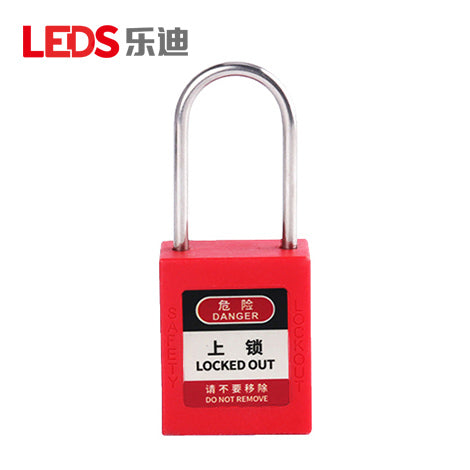

LDP41 - 4 mm Thin Stainless-Steel-Shackle Safety Padlock

The LEDS LDP41 is a thin-shackle industrial safety padlock with a 4 mm stainless-steel shackle for Lockout/Tagout (LOTO) points that cannot accept a standard 6 mm shackle. The slim shackle provides a 23 mm internal width while retaining the mechanical strength and corrosion resistance of stainless steel. Its lightweight engineering-plastic body is suitable for machinery, electrical cabinets, and restricted industrial lockout points, and is designed for resistance to UV exposure, corrosion, temperature variation, and impact. A key-retaining mechanism prevents key removal while the padlock is open.

Specifications

Model : LDP41

Variant Models : LDP41-D / LDP41-A / LDP41-MK / LDP41-AMK / LDP41-GMK

Type : 4 mm Thin Stainless-Steel-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Industrial Equipment Isolation, Small Lockout Holes

Shackle Material : Stainless Steel

Shackle Diameter : 4 mm

Shackle Clearance : 38 mm (H) x 23 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Custom Options : Brass cylinder, safety labels, and laser markings

Features : Key-retaining design

⚠️ This product requires a lead time of 2-5 weeks before shipment.
