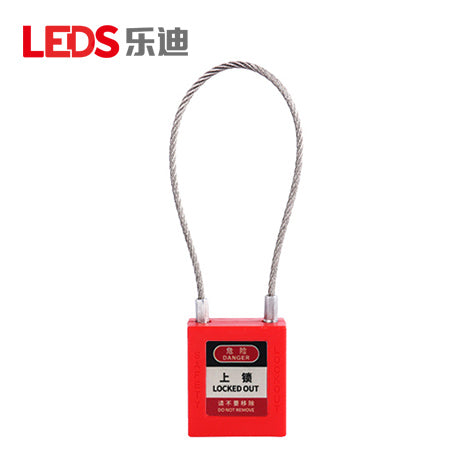

LDP31 - Flexible Cable Safety Padlock

The LEDS LDP31 is a flexible cable safety padlock designed for Lockout/Tagout (LOTO) applications involving irregular, closely spaced, or multiple isolation points. Its 3.2 mm stainless-steel cable can pass through locations that may be difficult to secure with a rigid shackle and provides a standard cable height of 85 mm. The cable length can also be customized for application-specific requirements. Its compact engineering-plastic body is lightweight and designed for resistance to UV exposure, corrosion, temperature variation, and impact. A key-retaining mechanism prevents key removal while the padlock is open.

Specifications

Model : LDP31

Variant Models : LDP31-D / LDP31-A / LDP31-MK / LDP31-AMK / LDP31-GMK

Type : Flexible Cable Safety Padlock

Application : Lockout/Tagout (LOTO), Multiple-Point Isolation, Irregular Lockout Points

Cable Material : Stainless-Steel Wire Rope

Cable Diameter : 3.2 mm

Standard Cable Height : 85 mm

Custom Cable Length : Available on Request

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Features : Key-retaining design; customizable cable length, safety labels, and laser markings

⚠️ This product requires a lead time of 2-5 weeks before shipment.
