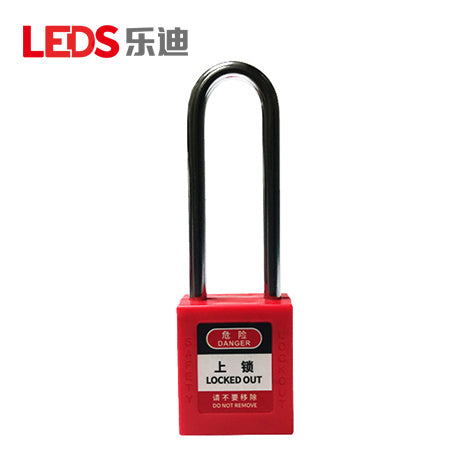

LDP23 - 76 mm Steel-Shackle Safety Padlock

The LEDS LDP23 is a long-shackle safety padlock with a 76 mm steel shackle for Lockout/Tagout (LOTO) applications requiring greater reach while retaining a compact 45 mm lock body. The extended shackle is suitable for recessed, oversized, or difficult-to-reach isolation points, while its steel construction provides mechanical strength for industrial equipment lockout. The engineering-plastic body is lightweight and designed for resistance to UV exposure, corrosion, temperature variation, and impact. A key-retaining mechanism prevents key removal while the padlock is open. Stainless-steel shackle and brass-cylinder options can be customized when required.

Specifications

Model : LDP23

Variant Models : LDP23-D / LDP23-A / LDP23-MK / LDP23-AMK / LDP23-GMK

Type : 76 mm Steel-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Industrial Equipment Isolation, Recessed or

 Oversized Lockout Points

Shackle Material : Steel

Shackle Diameter : 6 mm

Shackle Clearance : 76 mm (H) x 20 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Custom Options : Stainless-steel shackle, brass cylinder, safety labels, and laser markings

Features : Key-retaining design

⚠️ This product requires a lead time of 2-5 weeks before shipment.
