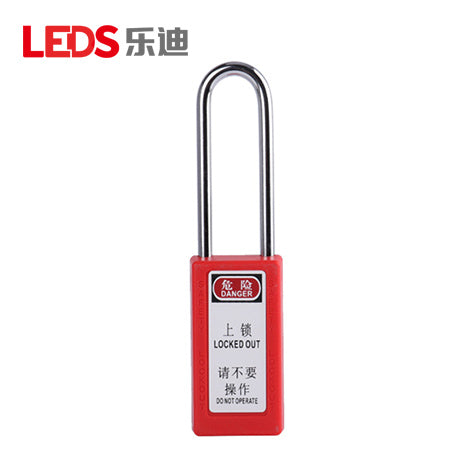

LDP22L - 38 mm Long-Body Steel-Shackle Safety Padlock

The LEDS LDP22L is a long-body safety padlock with a 38 mm steel shackle for industrial Lockout/Tagout (LOTO) and energy isolation. It uses the same 38 mm shackle clearance as the LDP22 but combines it with a taller 76 mm lock body, providing a larger and more visible area for personnel, department, or equipment identification. The steel shackle provides reliable mechanical strength, while the engineering-plastic body is designed for resistance to UV exposure, corrosion, temperature variation, and impact. A key-retaining mechanism prevents key removal while the padlock is open.

Specifications

Model : LDP22L

Variant Models : LDP22L-D / LDP22L-A / LDP22L-MK / LDP22L-AMK / LDP22L-GMK

Type : 38 mm Long-Body Steel-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Industrial Equipment Isolation, Maintenance

Shackle Material : Steel

Shackle Diameter : 6 mm

Shackle Clearance : 38 mm (H) x 20 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 76 x 40 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Custom Options : Stainless-steel shackle, brass cylinder, safety labels, and laser markings

Features : Key-retaining design; enlarged identification area

⚠️ This product requires a lead time of 2-5 weeks before shipment.
