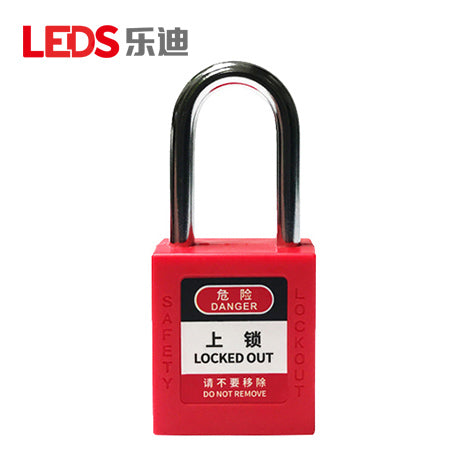

LDP22 - 38 mm Steel-Shackle Safety Padlock

The LEDS LDP22 is a 38 mm steel-shackle safety padlock designed for industrial Lockout/Tagout (LOTO) and energy-isolation procedures. Its standard-height steel shackle provides a practical balance of clearance and mechanical strength for machinery, electrical cabinets, valves, and other industrial lockout points. The engineering-plastic body is lightweight and designed for resistance to UV exposure, corrosion, temperature variation, and impact. A key-retaining mechanism prevents the key from being removed while the padlock is open. Five keying configurations, nine body colors, and customizable components or identification markings support structured safety management.

Specifications

Model : LDP22

Variant Models : LDP22-D / LDP22-A / LDP22-MK / LDP22-AMK / LDP22-GMK

Type : 38 mm Steel-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Industrial Equipment Isolation, Maintenance

Shackle Material : Steel

Shackle Diameter : 6 mm

Shackle Clearance : 38 mm (H) x 20 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Custom Options : Stainless-steel shackle, brass cylinder, safety labels, and laser markings

Features : Key-retaining design

⚠️ This product requires a lead time of 2-5 weeks before shipment.
