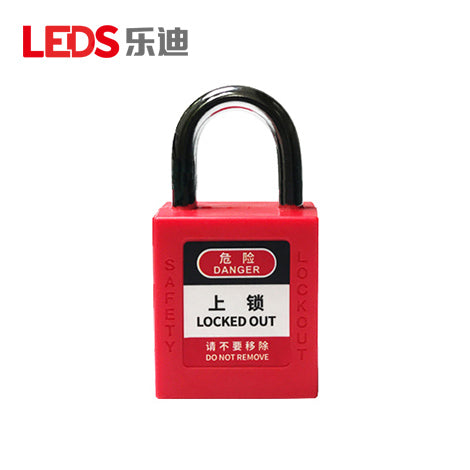

LDP21 - 25 mm Steel-Shackle Safety Padlock

The LEDS LDP21 is a compact industrial safety padlock with a 25 mm steel shackle for Lockout/Tagout (LOTO) and equipment-isolation procedures. Its short shackle is suitable for compact lockout points and helps minimize unnecessary clearance around the locked component. The steel shackle provides mechanical strength, while the lightweight engineering-plastic body is designed for resistance to UV exposure, corrosion, temperature variation, and impact. The key-retaining mechanism prevents the key from being removed while the padlock is open. Stainless-steel shackle and brass-cylinder options can be customized when required.

Specifications

Model : LDP21

Variant Models : LDP21-D / LDP21-A / LDP21-MK / LDP21-AMK / LDP21-GMK

Type : 25 mm Steel-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Industrial Equipment Isolation, Maintenance

Shackle Material : Steel

Shackle Diameter : 6 mm

Shackle Clearance : 25 mm (H) x 20 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Custom Options : Stainless-steel shackle, brass cylinder, safety labels, and laser markings

Features : Key-retaining design

⚠️ This product requires a lead time of 2-5 weeks before shipment.
