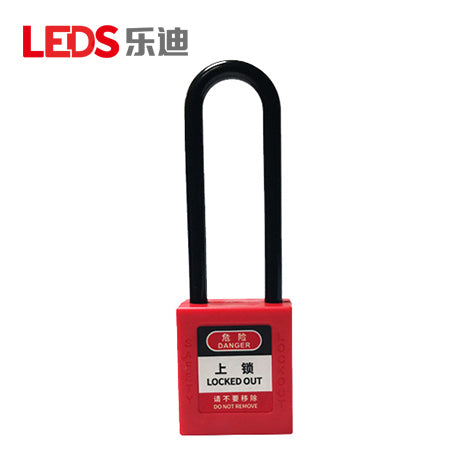

LDP13 - 76 mm Nylon-Shackle Safety Padlock

The LEDS LDP13 is a long-shackle safety padlock with a 76 mm non-conductive nylon shackle, designed for Lockout/Tagout (LOTO) applications requiring greater reach while retaining a compact 45 mm lock body. It is suitable for recessed or oversized isolation points and for electrical applications where a metal shackle is undesirable. The PA nylon shackle helps avoid an unintended conductive path, while the engineering-plastic body is designed for resistance to UV exposure, corrosion, temperature variation, and impact. A key-retaining mechanism prevents key removal while the padlock is open.

Specifications

Model : LDP13

Variant Models : LDP13-D / LDP13-A / LDP13-MK / LDP13-AMK / LDP13-GMK

Type : 76 mm Nylon-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Electrical Isolation, Recessed or Oversized Lockout Points

Shackle Material : PA Nylon

Shackle Diameter : 6 mm

Shackle Clearance : 76 mm (H) x 20 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Features : Key-retaining design; customizable safety labels and laser markings

⚠️ This product requires a lead time of 2-5 weeks before shipment.
