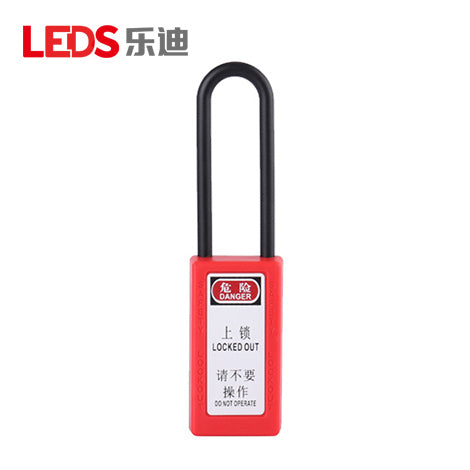

LDP12L - 38 mm Long-Body Nylon-Shackle Safety Padlock

The LEDS LDP12L is a long-body safety padlock with a 38 mm non-conductive nylon shackle, developed for Lockout/Tagout (LOTO) and electrical isolation. It uses the same 38 mm shackle clearance as the LDP12 but combines it with a taller 76 mm lock body, providing a larger and more visible surface for personnel, department, or equipment identification. The PA nylon shackle is suitable where a metal shackle is undesirable. Its engineering-plastic body is designed for resistance to UV exposure, corrosion, temperature variation, and impact, while the key-retaining mechanism prevents key removal when the padlock is open.

Specifications

Model : LDP12L

Variant Models : LDP12L-D / LDP12L-A / LDP12L-MK / LDP12L-AMK / LDP12L-GMK

Type : 38 mm Long-Body Nylon-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Electrical Isolation, Industrial Maintenance

Shackle Material : PA Nylon

Shackle Diameter : 6 mm

Shackle Clearance : 38 mm (H) x 20 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 76 x 40 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed / -

AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT), Purple (PL),

 Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Features : Key-retaining design; enlarged identification area; customizable safety labels and laser markings

⚠️ This product requires a lead time of 2-5 weeks before shipment.
