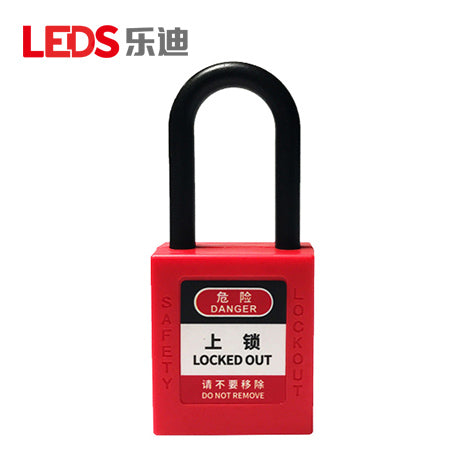

LDP12 - 38 mm Nylon-Shackle Safety Padlock

The LEDS LDP12 is a safety padlock with a 38 mm non-conductive nylon shackle for Lockout/Tagout (LOTO), electrical isolation, and industrial maintenance. Its standard-height shackle provides more clearance than the LDP11 while retaining a compact 45 mm lock body. The PA nylon shackle is suited to applications where a metal shackle is undesirable, and the engineering-plastic body is designed for resistance to UV exposure, corrosion, temperature variation, and impact. The key-retaining mechanism prevents key removal while the padlock is open. Multiple keying systems, nine colors, and customizable markings support organized energy-isolation programs.

Specifications

Model : LDP12

Variant Models : LDP12-D / LDP12-A / LDP12-MK / LDP12-AMK / LDP12-GMK

Type : 38 mm Nylon-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Electrical Isolation, Industrial Maintenance

Shackle Material : PA Nylon

Shackle Diameter : 6 mm

Shackle Clearance : 38 mm (H) x 20 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master Keyed

 / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Features : Key-retaining design; customizable safety labels and laser markings

⚠️ This product requires a lead time of 2-5 weeks before shipment.
