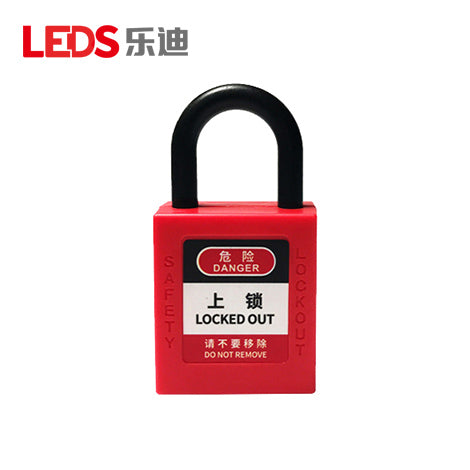

LDP11 - 25 mm Nylon-Shackle Safety Padlock

The LEDS LDP11 is a compact safety padlock with a 25 mm non-conductive nylon shackle, designed for industrial Lockout/Tagout (LOTO) and electrical isolation. The short shackle is suitable for compact lockout points, while the PA nylon construction helps avoid an unintended conductive path through the shackle. Its engineering-plastic body is lightweight and designed to withstand UV exposure, corrosion, temperature variation, and impact. A key-retaining mechanism prevents the key from being removed while the padlock is open. Five keying configurations, nine body colors, and customizable safety labels or laser markings support clear personnel and equipment identification.

Specifications

Model : LDP11

Variant Models : LDP11-D / LDP11-A / LDP11-MK / LDP11-AMK / LDP11-GMK

Type : 25 mm Nylon-Shackle Safety Padlock

Application : Lockout/Tagout (LOTO), Electrical Isolation, Industrial Maintenance

Shackle Material : PA Nylon

Shackle Diameter : 6 mm

Shackle Clearance : 25 mm (H) x 20 mm (W)

Lock Body Material : Engineering Plastic (ABS or PA Nylon)

Lock Body Dimensions : 45 x 38 x 20 mm (H x W x D)

Keying Variants : -D Keyed Different / -A Keyed Alike / -MK Keyed Different, Master

Keyed / -AMK Keyed Alike, Master Keyed / -GMK Grand Master Keyed

Body Colors : Red (RD), Green (GN), Orange (OG), Blue (BL), Yellow (YL), White (WT),

 Purple (PL), Black (BK), or Brown (BN)

Temperature Range : -20 to +120°C

Features : Key-retaining design; customizable safety labels and laser markings

⚠️ This product requires a lead time of 2-5 weeks before shipment.
