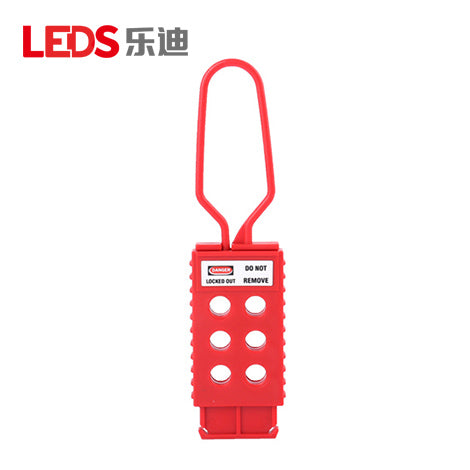

LDH53 - Long-Loop Nylon Insulating Lockout Hasp

The LEDS LDH53 is a long-loop nylon insulating lockout hasp that accommodates up to six safety padlocks for group Lockout/Tagout (LOTO). The PA nylon body is tough and resistant to breakage, making the hasp suitable for electrical-isolation procedures, corrosive conditions, and locations with elevated explosion-risk control requirements. Its sliding construction allows the hasp to be opened and closed vertically. According to the October 2024 LEDS catalog drawing, the overall size is 173 x 43 mm, the loop section is 6 mm thick, and the lock holes are 9 mm in diameter.

Specifications

Model : LDH53

Type : Six-Hole Long-Loop Nylon Insulating Lockout Hasp

Application : Electrical Isolation, Group Lockout/Tagout (LOTO), Corrosive Environments

Material : PA Nylon

Color : Red

Opening Method : Vertical Sliding Design

Catalog Overall Dimensions : 173 x 43 mm (H x W)

Loop Section Thickness : 6 mm

Lock Hole Diameter : 9 mm

Lockout Capacity : Up to 6 Padlocks

⚠️ This product requires a lead time of 2-5 weeks before shipment.
