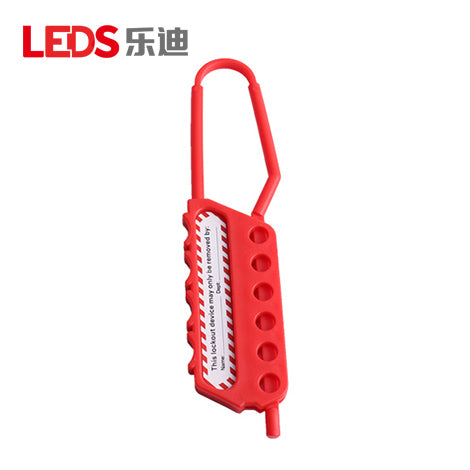

LDH52 - Six-Padlock Nylon Insulating Lockout Hasp

The LEDS LDH52 is an extended nylon insulating lockout hasp that accommodates up to six safety padlocks for group Lockout/Tagout (LOTO). Its PA nylon construction provides toughness and resistance to breakage for electrical-isolation procedures, corrosive conditions, and locations with elevated explosion-risk control requirements. The hasp opens and closes through a vertical sliding action. The October 2024 LEDS catalog drawing specifies an overall size of 190 x 41.5 mm, a 6.5 mm loop-rod diameter, and 9 mm lock holes.

Specifications

Model : LDH52

Type : Six-Hole Nylon Insulating Lockout Hasp

Application : Electrical Isolation, Group Lockout/Tagout (LOTO), Corrosive Environments

Material : PA Nylon

Color : Red

Opening Method : Vertical Sliding Design

Catalog Overall Dimensions : 190 x 41.5 mm (H x W)

Loop Rod Diameter : 6.5 mm

Lock Hole Diameter : 9 mm

Lockout Capacity : Up to 6 Padlocks

⚠️ This product requires a lead time of 2-5 weeks before shipment.
