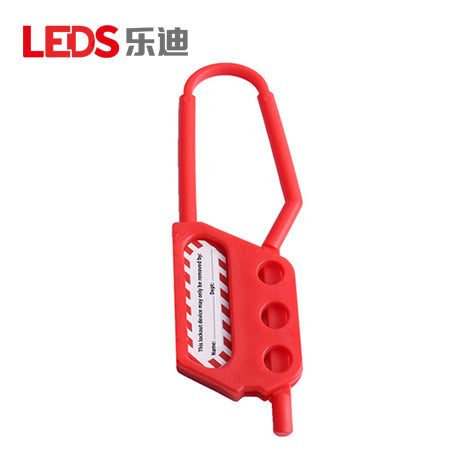

LDH51 - Three-Padlock Nylon Insulating Lockout Hasp

The LEDS LDH51 is a compact nylon insulating lockout hasp that accommodates up to three safety padlocks for group Lockout/Tagout (LOTO). Its PA nylon construction is tough and resistant to breakage, making it suitable for electrical isolation, corrosive conditions, and locations with elevated explosion-risk control requirements. The sliding design opens by moving the two sections vertically. According to the October 2024 LEDS catalog drawing, the hasp measures 115 x 40 mm overall, uses a 6.5 mm loop rod, and has 9 mm lock holes.

Specifications

Model : LDH51

Type : Three-Hole Nylon Insulating Lockout Hasp

Application : Electrical Isolation, Group Lockout/Tagout (LOTO), Corrosive Environments

Material : PA Nylon

Color : Red

Opening Method : Vertical Sliding Design

Catalog Overall Dimensions : 115 x 40 mm (H x W)

Loop Rod Diameter : 6.5 mm

Lock Hole Diameter : 9 mm

Lockout Capacity : Up to 3 Padlocks

⚠️ This product requires a lead time of 2-5 weeks before shipment.
