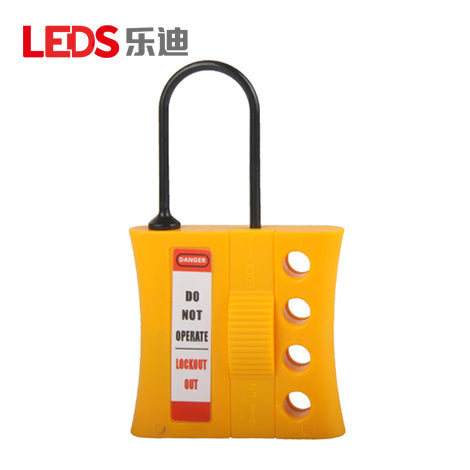

LDH41 - 3 mm Shackle Insulating Lockout Hasp

The LEDS LDH41 is a compact four-hole insulating lockout hasp with a 3 mm nylon locking shackle. It is intended for electrical-isolation procedures and locations with corrosive conditions or elevated explosion-risk control requirements. The yellow body is made from alloy engineering plastic, while the nonmetallic nylon shackle helps provide electrical insulation. Up to four workers can attach individual safety padlocks to the same isolation point. Both sides of the body can be marked with a water-based pen. The October 2024 LEDS catalog drawing specifies an overall size of 105 x 61 mm, a 58 mm body height, and 7 mm lock holes.

Specifications

Model : LDH41

Type : Four-Hole Insulating Lockout Hasp

Application : Electrical Isolation, Group Lockout/Tagout (LOTO), Corrosive Environments

Hasp Shackle Diameter : 3 mm

Material : Nylon Locking Shackle with Alloy Engineering Plastic Body

Color : Yellow Body with Black Shackle

Catalog Overall Dimensions : 105 x 61 mm (H x W)

Body Height : 58 mm

Lock Hole Diameter : 7 mm

Lockout Capacity : Up to 4 Padlocks

Writable Surface : Both Sides Can Be Marked with a Water-Based Pen

⚠️ This product requires a lead time of 2-5 weeks before shipment.
