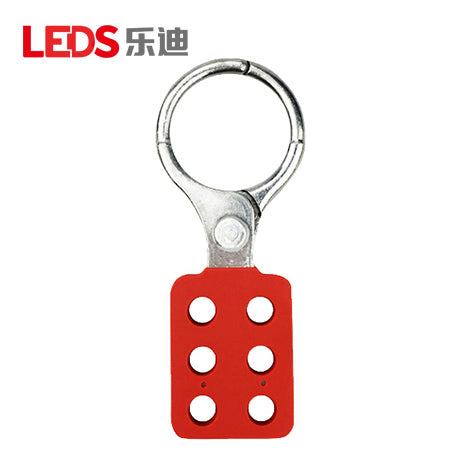

LDH32 - 38 mm Aluminum Lockout Hasp

The LEDS LDH32 is a six-hole aluminum lockout hasp with a larger 38 mm jaw opening for group Lockout/Tagout (LOTO). Up to six authorized workers can secure one energy-isolation point with separate safety padlocks, helping prevent equipment from being returned to service before every worker has removed their lock. The hasp uses a die-cast aluminum locking body and a red engineering-nylon handle formed by injection molding. The October 2024 LEDS catalog specifies overall dimensions of 123 x 40 mm, a 55 mm handle-section height, a 10.5 mm lock-hole diameter, and a 6 mm aluminum-loop section thickness.

Specifications

Model : LDH32

Type : Six-Hole Aluminum Lockout Hasp

Application : Group Lockout/Tagout (LOTO), Energy Isolation, Industrial Maintenance

Jaw Opening Diameter : 38 mm (1.5 in)

Material : Die-Cast Aluminum Body with Injection-Molded Engineering Nylon Handle

Color : Red Handle with Metallic Aluminum Loop

Catalog Overall Dimensions : 123 x 40 mm (H x W)

Handle Section Height : 55 mm

Aluminum Loop Section Thickness : 6 mm

Lock Hole Diameter : 10.5 mm

Lockout Capacity : Up to 6 Padlocks

⚠️ This product requires a lead time of 2-5 weeks before shipment.
