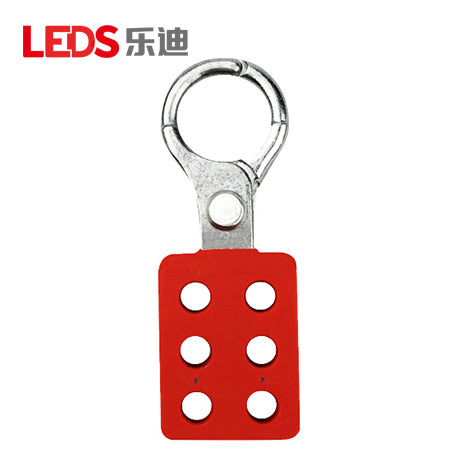

LDH31 - 25 mm Aluminum Lockout Hasp

The LEDS LDH31 is a six-hole aluminum lockout hasp with a 25 mm jaw opening for group Lockout/Tagout (LOTO). It allows up to six authorized workers to attach individual safety padlocks to the same energy-isolation point, helping keep equipment isolated until every lock has been removed. The hasp uses a die-cast aluminum locking body with a red handle injection-molded from engineering-grade nylon. According to the October 2024 LEDS catalog, its overall dimensions are 112 x 40 mm, the handle section is 55 mm high, the lock-hole diameter is 10.5 mm, and the aluminum loop section is 6 mm thick.

Specifications

Model : LDH31

Type : Six-Hole Aluminum Lockout Hasp

Application : Group Lockout/Tagout (LOTO), Energy Isolation, Industrial Maintenance

Jaw Opening Diameter : 25 mm (1 in)

Material : Die-Cast Aluminum Body with Injection-Molded Engineering Nylon Handle

Color : Red Handle with Metallic Aluminum Loop

Catalog Overall Dimensions : 112 x 40 mm (H x W)

Handle Section Height : 55 mm

Aluminum Loop Section Thickness : 6 mm

Lock Hole Diameter : 10.5 mm

Lockout Capacity : Up to 6 Padlocks

⚠️ This product requires a lead time of 2-5 weeks before shipment.
