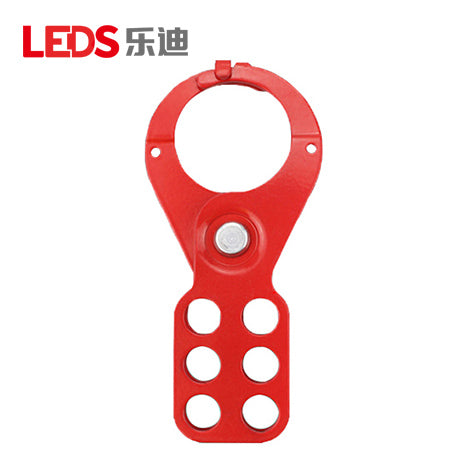

LDH24 - 38 mm Economy Steel Jaw Lockout Hasp

The LEDS LDH24 is a six-hole economy steel jaw lockout hasp with a 38 mm jaw opening for group Lockout/Tagout (LOTO). Its larger jaw provides additional clearance for compatible energy-isolation points, while the retaining ring helps resist prying. The all-steel body has a red high-temperature powder-coated finish for visibility and surface protection. Up to six authorized workers can apply their individual safety padlocks. According to the October 2024 LEDS catalog, the overall size is 128 x 40 mm and the lock-hole diameter is 12 mm. Padlock shackles up to 10 mm in diameter can be used.

Specifications

Model : LDH24

Type : Six-Hole Economy Steel Jaw Lockout Hasp

Application : Group Lockout/Tagout (LOTO), Energy Isolation, Industrial Maintenance

Jaw Opening Diameter : 38 mm (1.5 in)

Material : Steel

Finish : Red High-Temperature Powder-Coated Finish

Color : Red

Catalog Overall Dimensions : 128 x 40 mm (H x W)

Lock Hole Diameter : 12 mm

Maximum Padlock Shackle Diameter : 10 mm

Lockout Capacity : Up to 6 Padlocks

Anti-Pry Feature : Retaining Ring Helps Prevent the Hasp from Being Pried Open

⚠️ This product requires a lead time of 2-5 weeks before shipment.
