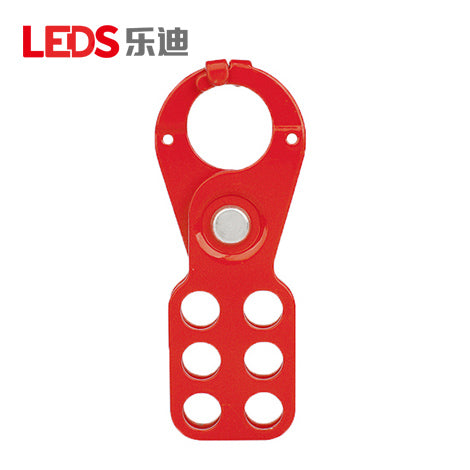

LDH23 - 25 mm Economy Steel Jaw Lockout Hasp

The LEDS LDH23 is a six-hole economy steel jaw lockout hasp with a 25 mm jaw opening for group Lockout/Tagout (LOTO). Its retaining-ring structure helps prevent the hasp from being pried open, while the red high-temperature powder-coated finish improves visibility and protects the steel surface. Up to six workers can attach individual safety padlocks to the same energy-isolation point. The October 2024 LEDS catalog specifies an overall size of 115 x 40 mm and a lock-hole diameter of 12 mm. The product family is designed for padlock shackles up to 10 mm in diameter.

Specifications

Model : LDH23

Type : Six-Hole Economy Steel Jaw Lockout Hasp

Application : Group Lockout/Tagout (LOTO), Energy Isolation, Industrial Maintenance

Jaw Opening Diameter : 25 mm (1 in)

Material : Steel

Finish : Red High-Temperature Powder-Coated Finish

Color : Red

Catalog Overall Dimensions : 115 x 40 mm (H x W)

Lock Hole Diameter : 12 mm

Maximum Padlock Shackle Diameter : 10 mm

Lockout Capacity : Up to 6 Padlocks

Anti-Pry Feature : Retaining Ring Helps Prevent the Hasp from Being Pried Open

⚠️ This product requires a lead time of 2-5 weeks before shipment.
