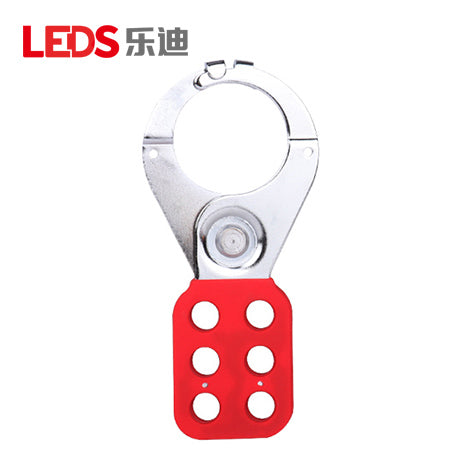

LDH22 - 38 mm Steel Jaw Lockout Hasp

The LEDS LDH22 is a six-hole steel jaw lockout hasp with a 38 mm jaw opening and a retaining ring that helps prevent the hasp from being pried open. It supports group Lockout/Tagout (LOTO) by allowing up to six authorized workers to place separate safety padlocks on one isolation point. The steel jaw is chrome-plated, while the red handle is injection-molded from PA nylon. The October 2024 LEDS catalog specifies overall dimensions of 128 x 40 mm and a lock-hole diameter of 10.5 mm. The hasp accepts padlock shackles up to 10 mm in diameter.

Specifications

Model : LDH22

Type : Six-Hole Steel Jaw Lockout Hasp

Application : Group Lockout/Tagout (LOTO), Energy Isolation, Industrial Maintenance

Jaw Opening Diameter : 38 mm (1.5 in)

Material : Steel Jaw with Injection-Molded PA Nylon Handle

Finish : Chrome-Plated Steel Jaw

Color : Red Handle with Metallic Jaw

Catalog Overall Dimensions : 128 x 40 mm (H x W)

Lock Hole Diameter : 10.5 mm

Maximum Padlock Shackle Diameter : 10 mm

Lockout Capacity : Up to 6 Padlocks

Anti-Pry Feature : Retaining Ring Helps Prevent the Hasp from Being Pried Open

⚠️ This product requires a lead time of 2-5 weeks before shipment.
