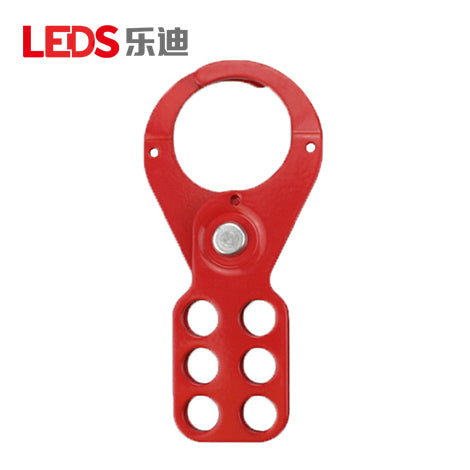

LDH14 - 38 mm Economy Steel Lockout Hasp

The LEDS LDH14 is a six-hole economy steel lockout hasp with a 38 mm jaw opening for group Lockout/Tagout (LOTO). The larger jaw accommodates isolation points that require more internal clearance than the LDH13. Its steel construction has a red high-temperature powder-coated finish for visibility and surface protection. Up to six authorized workers can attach individual safety padlocks, helping ensure that the isolation point cannot be released until all locks have been removed. The October 2024 LEDS catalog specifies overall dimensions of 128 x 40 mm and a 12 mm lock-hole diameter. Padlock shackles up to 10 mm in diameter can be used.

Specifications

Model : LDH14

Type : Six-Hole Economy Steel Lockout Hasp

Application : Group Lockout/Tagout (LOTO), Energy Isolation, Industrial Maintenance

Jaw Opening Diameter : 38 mm (1.5 in)

Material : Steel

Finish : Red High-Temperature Powder-Coated Finish

Color : Red

Catalog Overall Dimensions : 128 x 40 mm (H x W)

Lock Hole Diameter : 12 mm

Maximum Padlock Shackle Diameter : 10 mm

Lockout Capacity : Up to 6 Padlocks

⚠️ This product requires a lead time of 2-5 weeks before shipment.
