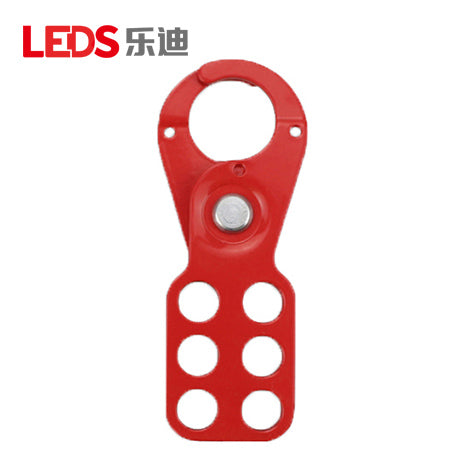

LDH13 - 25 mm Economy Steel Lockout Hasp

The LEDS LDH13 is a six-hole economy steel lockout hasp with a 25 mm jaw opening for group Lockout/Tagout (LOTO). Its all-steel construction uses a red high-temperature powder-coated finish for visibility and surface protection. Up to six workers can place their own safety padlocks on the same isolation point, helping keep the equipment locked out until every worker has removed their lock. The October 2024 LEDS catalog specifies an overall size of 115 x 40 mm and a lock-hole diameter of 12 mm. The hasp is compatible with padlock shackles up to 10 mm in diameter.

Specifications

Model : LDH13

Type : Six-Hole Economy Steel Lockout Hasp

Application : Group Lockout/Tagout (LOTO), Energy Isolation, Industrial Maintenance

Jaw Opening Diameter : 25 mm (1 in)

Material : Steel

Finish : Red High-Temperature Powder-Coated Finish

Color : Red

Catalog Overall Dimensions : 115 x 40 mm (H x W)

Lock Hole Diameter : 12 mm

Maximum Padlock Shackle Diameter : 10 mm

Lockout Capacity : Up to 6 Padlocks

⚠️ This product requires a lead time of 2-5 weeks before shipment.
