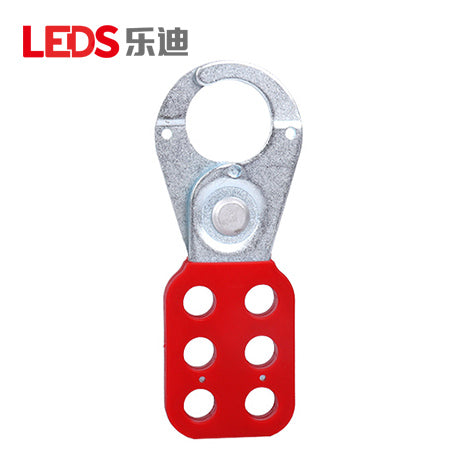

LDH11 - 25 mm Steel Lockout Hasp

The LEDS LDH11 is a six-hole steel lockout hasp with a 25 mm jaw opening for group Lockout/Tagout (LOTO). It allows up to six workers to attach their individual safety padlocks to one energy-isolation point, helping keep the equipment isolated until every padlock has been removed. The steel jaw has a chrome-plated finish, while the red handle is injection-molded from PA nylon for easier handling and identification. The October 2024 LEDS catalog specifies an overall size of 115 x 40 mm and a lock-hole diameter of 10.5 mm. The hasp accepts padlock shackles up to 10 mm in diameter, and a stainless-steel version can be customized on request.

Specifications

Model : LDH11

Type : Six-Hole Steel Lockout Hasp

Application : Group Lockout/Tagout (LOTO), Energy Isolation, Industrial Maintenance

Jaw Opening Diameter : 25 mm (1 in)

Material : Steel Jaw with Injection-Molded PA Nylon Handle

Finish : Chrome-Plated Steel Jaw

Color : Red Handle with Metallic Jaw

Catalog Overall Dimensions : 115 x 40 mm (H x W)

Lock Hole Diameter : 10.5 mm

Maximum Padlock Shackle Diameter : 10 mm

Lockout Capacity : Up to 6 Padlocks

Customization : Stainless-Steel Version Available on Request

⚠️ This product requires a lead time of 2-5 weeks before shipment.
