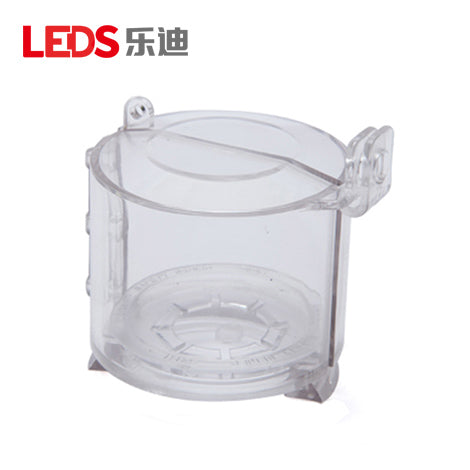

LDE23 - Modular Emergency-Stop Button Lockout

The LEDS LDE23 is a three-piece modular emergency-stop button lockout for preventing accidental operation of push-pull or twist-release emergency-stop buttons during Lockout/Tagout (LOTO). The transparent high-strength polycarbonate cover can be removed when no lockout is required, leaving only the permanently installed base in place. The set includes bases for 22 mm and 30.5 mm installations and is supplied with 3M adhesive backing. The October 2024 LEDS catalog drawing shows cover dimensions of approximately 54 x 46 x 45 mm and an 8 mm lock hole.

Specifications

Model : LDE23

Type : Modular Emergency-Stop Button Lockout

Application : Push-Pull Emergency-Stop Buttons, Twist-Release Emergency-Stop Buttons, Lockout/Tagout (LOTO)

Material : High-Strength Transparent Polycarbonate (PC)

Color : Transparent

Catalog Cover Dimensions : Approximately 54 x 46 x 45 mm

Included Base Sizes : 22 mm and 30.5 mm

Set Contents : Three-Piece Set with 3M Adhesive Backing

Lock Hole Diameter : 8 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
