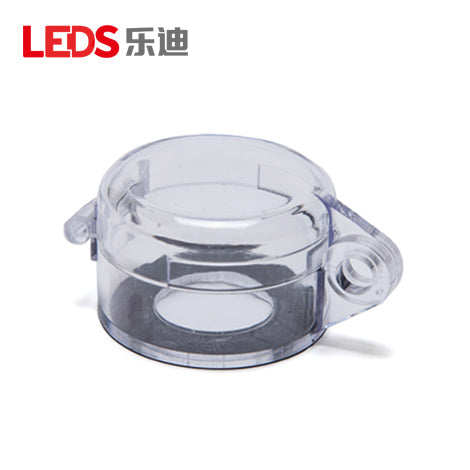

LDE21 - 22 mm Push-Button Lockout

The LEDS LDE21 is a transparent push-button lockout with a 22 mm mounting opening for preventing accidental operation of a control button during Lockout/Tagout (LOTO). The high-strength polycarbonate body is permanently mounted beneath the button, while the removable cover can be locked in place when isolation is required. This arrangement allows the base to remain installed without obstructing normal operation after the cover is removed. According to the October 2024 LEDS catalog, the lockout is 31.9 mm high with an outside diameter of 49.6 mm.

Specifications

Model : LDE21

Type : Push-Button Lockout

Application : Control Buttons, Control Panels, Lockout/Tagout (LOTO)

Material : High-Strength Transparent Polycarbonate (PC)

Color : Transparent

Catalog Height : 31.9 mm

Catalog Outside Diameter : 49.6 mm

Mounting Hole Diameter : 22 mm

Installation : Permanent Base with Removable Lockout Cover

⚠️ This product requires a lead time of 2-5 weeks before shipment.
