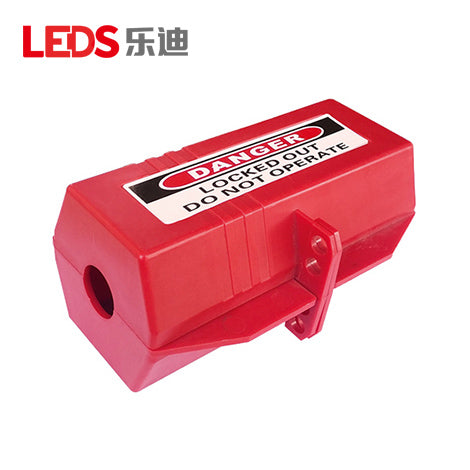

LDE13 - Large Polypropylene Electrical Plug Lockout

The LEDS LDE13 is a large clamshell electrical plug lockout for isolating larger industrial plugs during Lockout/Tagout (LOTO). The split hexagonal enclosure surrounds the disconnected plug while the cable exits through one of the two end openings. The October 2024 LEDS catalog specifies durable polypropylene construction, catalog dimensions A 178 x B 84 x C 84 mm, and cable-opening diameters d1 26 mm and d2 8 mm. It is intended for plugs smaller than 84 mm. The catalog states that the LDE11-LDE13 series accommodates 2-4 safety padlocks with shackle diameters no greater than 7 mm, but it does not assign a separate exact capacity to LDE13.

Specifications

Model : LDE13

Type : Large Clamshell Electrical Plug Lockout

Application : Electrical Plug Isolation, Lockout/Tagout (LOTO), Equipment Maintenance

Material : Polypropylene (PP)

Color : Red

Catalog Dimensions : A 178 x B 84 x C 84 mm

Cable Opening Diameters : d1 26 mm; d2 8 mm

Compatible Plug Size : Less Than 84 mm

Series Lockout Capacity : 2-4 Padlocks

Maximum Padlock Shackle Diameter : 7 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
