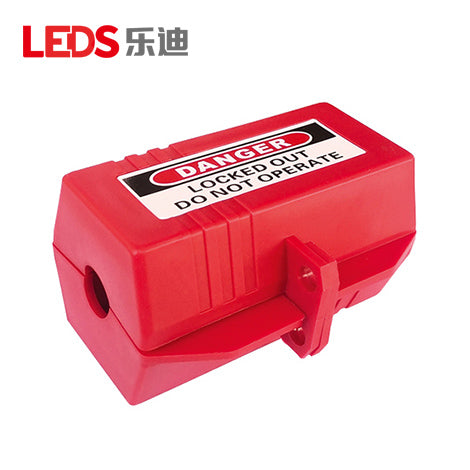

LDE12 - Medium Polypropylene Electrical Plug Lockout

The LEDS LDE12 is a medium clamshell electrical plug lockout for preventing disconnected plugs from being reconnected during Lockout/Tagout (LOTO). Its split hexagonal design encloses the plug while allowing the cable to pass through an end opening. According to the October 2024 LEDS catalog, it is made from durable polypropylene and has catalog dimensions A 120 x B 65 x C 65 mm, with cable-opening diameters d1 18 mm and d2 8 mm. It is intended for plugs smaller than 65 mm. The catalog states that the LDE11-LDE13 series accommodates 2-4 safety padlocks with shackle diameters no greater than 7 mm, but it does not assign a separate exact capacity to LDE12.

Specifications

Model : LDE12

Type : Medium Clamshell Electrical Plug Lockout

Application : Electrical Plug Isolation, Lockout/Tagout (LOTO), Equipment Maintenance

Material : Polypropylene (PP)

Color : Red

Catalog Dimensions : A 120 x B 65 x C 65 mm

Cable Opening Diameters : d1 18 mm; d2 8 mm

Compatible Plug Size : Less Than 65 mm

Series Lockout Capacity : 2-4 Padlocks

Maximum Padlock Shackle Diameter : 7 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
