LDE11 - Small Polypropylene Electrical Plug Lockout

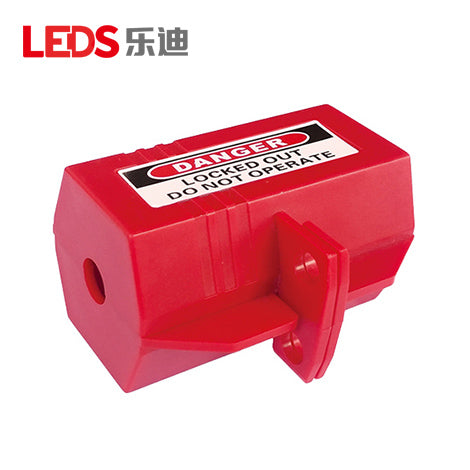

The LEDS LDE11 is a small clamshell electrical plug lockout for preventing disconnected plugs from being reconnected during Lockout/Tagout (LOTO). Its split hexagonal design encloses the plug while the cable exits through one of the two end openings. The October 2024 LEDS catalog specifies a durable polypropylene construction, catalog dimensions A 90 x B 51 x C 51 mm, and cable-opening diameters d1 13 mm and d2 8 mm. It is intended for plugs smaller than 51 mm. The catalog states that the LDE11-LDE13 series accommodates 2-4 safety padlocks with shackle diameters no greater than 7 mm, but it does not assign a separate exact capacity to LDE11.

Specifications

Model : LDE11

Type : Small Clamshell Electrical Plug Lockout

Application : Electrical Plug Isolation, Lockout/Tagout (LOTO), Equipment Maintenance

Material : Polypropylene (PP)

Color : Red

Catalog Dimensions : A 90 x B 51 x C 51 mm

Cable Opening Diameters : d1 13 mm; d2 8 mm

Compatible Plug Size : Less Than 51 mm

Series Lockout Capacity : 2-4 Padlocks

Maximum Padlock Shackle Diameter : 7 mm

⚠️ This product requires a lead time of 2-5 weeks before shipment.
