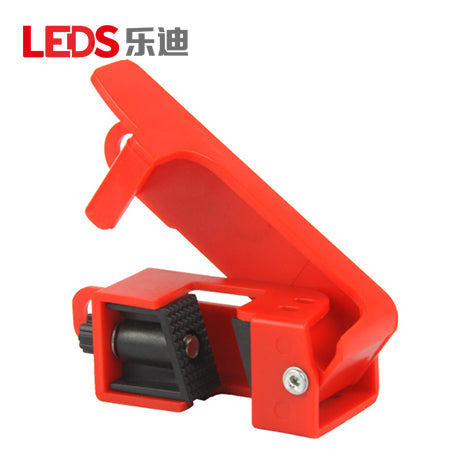

LDC52 - Adjustable Molded-Case Circuit Breaker Lockout

The LEDS LDC52 is an adjustable molded-case circuit breaker lockout made from engineering-grade ABS. It is intended for compatible small-to-medium circuit breakers with handle widths up to 16 mm. The October 2024 catalog specifies an adjustable clamping parameter of 8 to 16 mm. Its integrated locking screw and hinged clamping mechanism allow tool-free installation: position the device over the breaker handle, adjust and close the clamp, verify that the breaker cannot be operated, and then insert a safety padlock through the 8 mm lock hole. The design is suitable for electrical isolation, inspection, and maintenance work.

Specifications

Model : LDC52

Type : Adjustable Molded-Case Circuit Breaker Lockout

Application : Compatible Small-to-Medium Molded-Case Circuit Breakers

Locking Type : Bidirectional

Maximum Breaker Handle Width : 16 mm

Adjustable Clamping Parameter (a) : 8 to 16 mm

Lock Body Material : Engineering-Grade ABS

Lock Body Dimensions : 85 x 30 x 27 mm (H x W x D)

Lock Hole Diameter : 8 mm

Color : Red and Black

Installation : Tool-Free Adjustment Screw and Hinged Clamp

⚠️ This product requires a lead time of 2-5 weeks before shipment.
