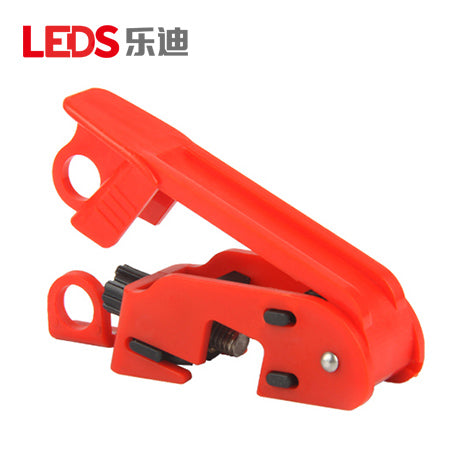

LDC51 - Medium Molded-Case Circuit Breaker Lockout

The LEDS LDC51 is a compact molded-case circuit breaker lockout made from engineering-grade ABS. It is designed for standard-height and tie-bar breaker handles used on compatible small-to-medium circuit breakers. The integrated adjustment screw and clamping handle allow the lockout to be fitted by hand without separate installation tools. After the clamp is tightened securely, a safety padlock is inserted through the 10 mm lock hole to support electrical isolation during servicing. Its compact design is convenient for carrying and storage while providing a practical locking solution for compatible breaker handles.

Specifications

Model : LDC51

Type : Medium Molded-Case Circuit Breaker Lockout

Application : Compatible Small-to-Medium Circuit Breakers with Standard-Height or Tie-Bar Handles

Breaker Locking Type : Single-Pole (1P)

Maximum Breaker Handle Thickness : 15 mm

Lock Body Material : Engineering-Grade ABS

Lock Body Dimensions : 85 x 23 x 21 mm (H x W x D)

Lock Hole Diameter : 10 mm

Maximum Padlock Shackle Diameter : 10 mm

Color : Red and Black

Installation : Tool-Free Adjustment Screw and Clamp Handle

⚠️ This product requires a lead time of 2-5 weeks before shipment.
