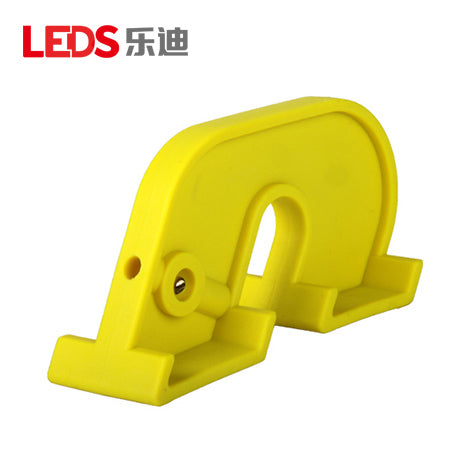

LDC41 - Large Circuit Breaker Lockout

The LEDS LDC41 is a large circuit breaker lockout for large and oversized molded-case circuit breakers with handle thickness below 20 mm. The reinforced PA nylon body clamps directly onto the breaker handle and does not require a pre-existing hole or modification to the breaker panel. A small flat-head screwdriver is used to tighten the slotted screw until the device is firmly secured, after which a safety padlock is installed. The large yellow body provides clear visibility at the isolation point and is suited to industrial electrical maintenance and Lockout/Tagout (LOTO) procedures.

Specifications

Model : LDC41

Type : Large Circuit Breaker Lockout

Application : Large and Oversized Molded-Case Circuit Breakers

Maximum Breaker Handle Thickness : Less Than 20 mm

Lock Body Material : Reinforced PA Nylon

Lock Body Dimensions : 125 x 63 x 40 mm (H x W x D)

Color : Yellow

Maximum Padlock Shackle Diameter : 8 mm

Installation : Small Flat-Head Screwdriver Required

⚠️ This product requires a lead time of 2-5 weeks before shipment.
