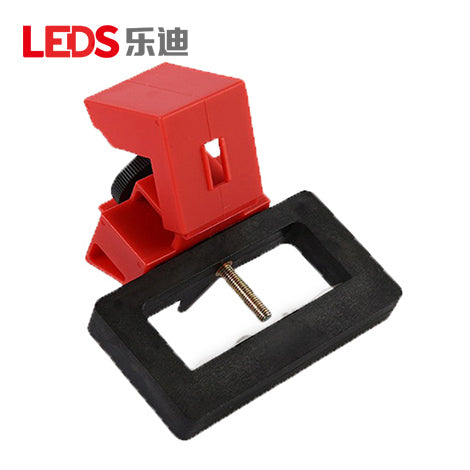

LDC33 - Large Clamp-On Circuit Breaker Lockout

The LEDS LDC33 is a large clamp-on circuit breaker lockout developed for oversized molded-case circuit breakers with internal-trip mechanisms. Its high-strength modified PA nylon body uses a blade-style clamping mechanism to engage large breaker handles securely. The October 2024 catalog specifies a maximum compatible handle width of 70 mm and a locking range of 22 x 68 mm. The integrated thumbwheel provides tool-free tightening, while the protective cover and an installed safety padlock block access to the adjustment mechanism during electrical isolation and maintenance.

Specifications

Model : LDC33

Type : Large Clamp-On Circuit Breaker Lockout

Application : Large and Oversized Molded-Case Circuit Breakers with Internal-Trip Mechanisms

Maximum Breaker Handle Width : 70 mm

Locking Range : 22 x 68 mm (L x W)

Lock Body Material : High-Strength Modified PA Nylon

Lock Body Dimensions : 62.5 x 94 x 95 mm (H x W x D)

Color : Red and Black

Maximum Padlock Shackle Diameter : 7 mm

Installation : Tool-Free Thumbwheel Clamp with Protective Cover

⚠️ This product requires a lead time of 2-5 weeks before shipment.
