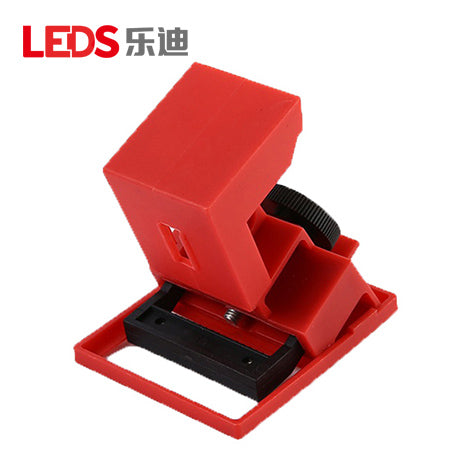

LDC32 - Medium Clamp-On Circuit Breaker Lockout

The LEDS LDC32 is a medium clamp-on circuit breaker lockout for molded-case circuit breakers with internal-trip mechanisms. Its high-strength modified PA nylon body uses a blade-style clamping mechanism for secure engagement with the breaker handle. The October 2024 catalog specifies a maximum compatible handle width of 40 mm and a locking range of 13 x 38 mm. The device is tightened by hand with the integrated thumbwheel, after which the protective cover and safety padlock help prevent access to the adjustment mechanism. The clamp-on design does not require modification of the breaker or panel.

Specifications

Model : LDC32

Type : Medium Clamp-On Circuit Breaker Lockout

Application : Medium Molded-Case Circuit Breakers with Internal-Trip Mechanisms

Maximum Breaker Handle Width : 40 mm

Locking Range : 13 x 38 mm (L x W)

Lock Body Material : High-Strength Modified PA Nylon

Lock Body Dimensions : 80 x 40 x 54 mm (H x W x D)

Color : Red and Black

Maximum Padlock Shackle Diameter : 7 mm

Installation : Tool-Free Thumbwheel Clamp with Protective Cover

⚠️ This product requires a lead time of 2-5 weeks before shipment.
