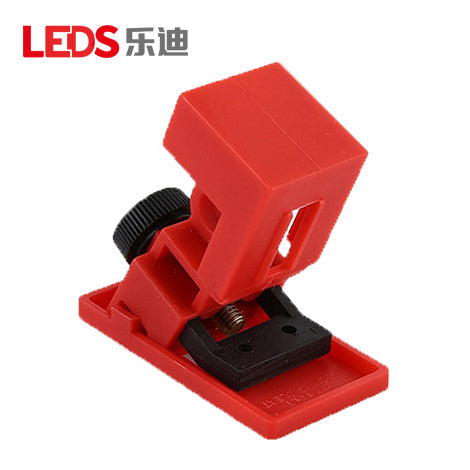

LDC31 - Small Clamp-On Circuit Breaker Lockout

The LEDS LDC31 is a small clamp-on circuit breaker lockout for small-to-medium molded-case circuit breakers with internal-trip mechanisms. Its high-strength modified PA nylon body uses a blade-style clamping design that grips the breaker handle securely while requiring less tightening force. The catalog specifies a maximum compatible handle width of 16 mm and a locking range of 10 x 16 mm. The thumbwheel clamp installs without a separate tool; after tightening, the protective cover is closed and a safety padlock is inserted to block access to the adjustment mechanism.

Specifications

Model : LDC31

Type : Small Clamp-On Circuit Breaker Lockout

Application : Small-to-Medium Molded-Case Circuit Breakers with Internal-Trip Mechanisms

Maximum Breaker Handle Width : 16 mm

Locking Range : 10 x 16 mm (L x W)

Lock Body Material : High-Strength Modified PA Nylon

Lock Body Dimensions : 55 x 23 x 8.5 mm (H x W x D)

Color : Red and Black

Maximum Padlock Shackle Diameter : 7 mm

Installation : Tool-Free Thumbwheel Clamp with Protective Cover

⚠️ This product requires a lead time of 2-5 weeks before shipment.
