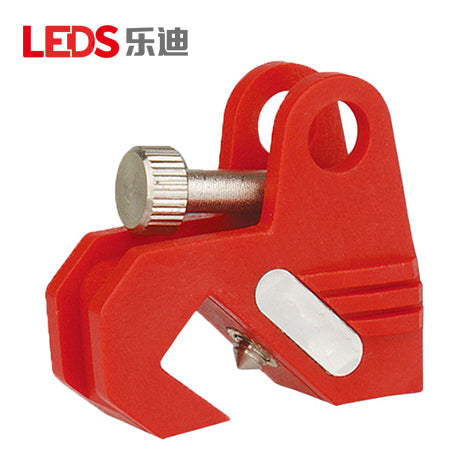

LDC25 - Tool-Free Multi-Purpose Circuit Breaker Lockout

The LEDS LDC25 is a multi-purpose circuit breaker lockout for miniature circuit breakers and small-to-medium molded-case circuit breakers with handles thinner than 10 mm. Its reinforced PA nylon body uses an integrated chrome-plated copper thumb screw for tool-free clamping directly onto the breaker handle. The design supports single-pole and multi-pole applications and does not require the breaker handle to have a pre-existing hole. Once the lockout has been tightened and checked for a secure fit, a safety padlock can be installed to support electrical isolation during inspection or maintenance.

Specifications

Model : LDC25

Type : Tool-Free Multi-Purpose Circuit Breaker Lockout

Application : Miniature Circuit Breakers and Small-to-Medium Molded-Case Circuit Breakers

Breaker Locking Type : Single-Pole / Multi-Pole (1P/nP)

Maximum Breaker Handle Thickness : Less Than 10 mm

Lock Body Material : Reinforced PA Nylon

Locking Screw : Integrated Chrome-Plated Copper Thumb Screw

Lock Body Dimensions : 41 x 38 x 14 mm (H x W x D)

Lock Hole Diameter : 8 mm

Maximum Padlock Shackle Diameter : 7 mm

Color : Red

Installation : Tool-Free Thumb-Screw Installation

⚠️ This product requires a lead time of 2-5 weeks before shipment.
